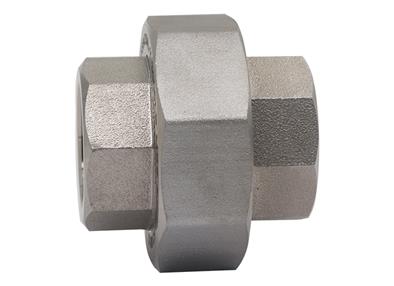

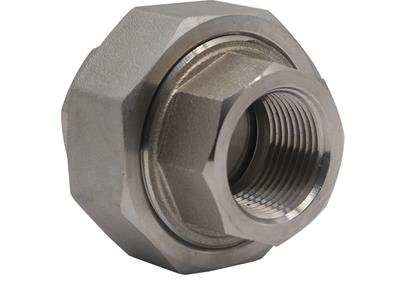

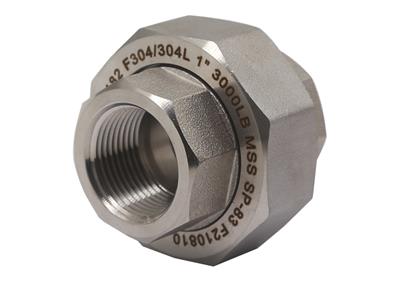

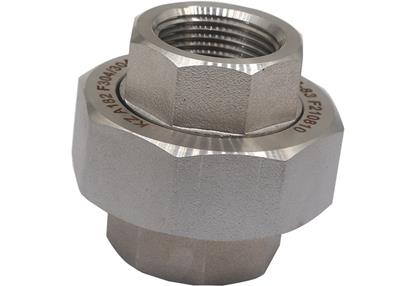

| 1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc. |
| 2. Connection: Socket Welded(male or female), Threaded |
| 3. Size Range: 1/8" - 4"(6mm - 100mm) |
|
4. Pressure Rating: Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS Socket welding Wog 3000, 6000, 9000 LBS |
|
5. Specifications: 1) Standard: ASME B 16.11, MSS-SP-79\ 83\ 95\97 2) Material:Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2 Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/ 317L/ F321/ F310/ 347/ 904 3) Size of raw material: Dia. 19-85mm round bar. |
| 6. Technology: Forged |
| 7. Packing: Wooden cases or wooden pallet or as per customers requirement |
| 8. Delivery Time: 30 days after order conformed |
| 9. Payment: By T/T or L/C |
|
10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding, Papermaking, construction etc. |
