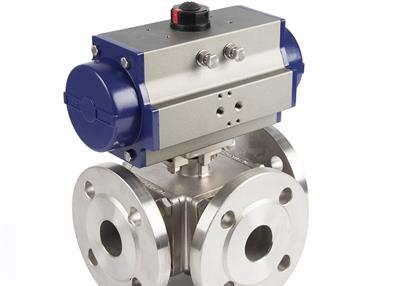

Pneumatic control 3-way ball valve

Type: double acting actuator and single acting actuator on optional
Accessories parts :solenoid valve(24VDC),switch limit on optional
Ball valve: three way T port and L port on optional
Material: WCB,304,316
Pressure rating of valve:PN16—PN40,class 150LB,300LB on optional
Working medium: water, gas, oil etc

Product application industry
The product is suitable for industries such as petroleum, chemical, natural gas, biochemical, pharmaceutical, environmental protection, and new energy.

Technical Specification
DN:T port/ L port，DN15～DN200
W.P:CLASS 150/300 PN16/40 10K ）
W.T:-20℃～180℃
Body Materia:WCB/CF8/CF8M
Actuator:Pneumatic，Electric motor
Connection:Flanged end

ANSI CLASS 150/300
Design：ASME B16.34
Flange dimension：ASME B16.5
lnspection &testing: API 598
