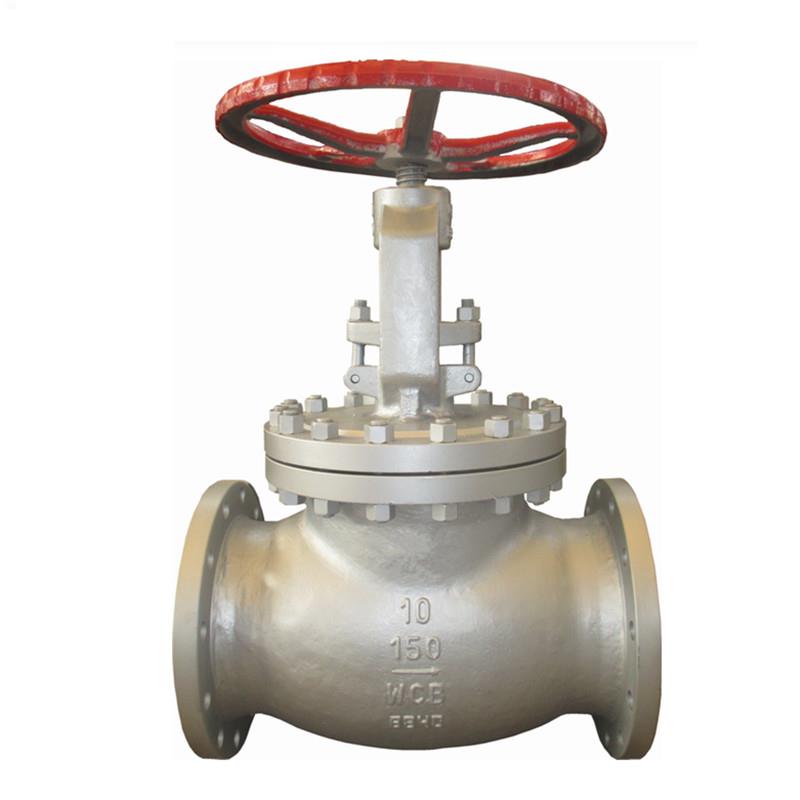

Design Standard: BS 1873 or API623
Pressure-temperature Ratings: ASME B16.34
Size Range: 2” to 28”
Pressure Range: Class 150 to 2500
End Connections: Flanged RF, RTJ, Butt Weld
Flanged End Dimensions: ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”)
Butt Weld End Dimensions: ASME B16.25 Face to Face
Face to Face Dimensions: ASME B16.10
Inspection and Testing: API 598
Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF3, CF3M, CF8M, A995 4A, 5A, 6A, C95800, INCONEL 625, INCONEL 825, Hastelloy C, MONEL.
Trim Materials: 1#, 5#,8#,10#,12#,16#
Packing materials: graphite, graphite with inconel wire, PTFE
