Threaded Pneumatic control ball valve

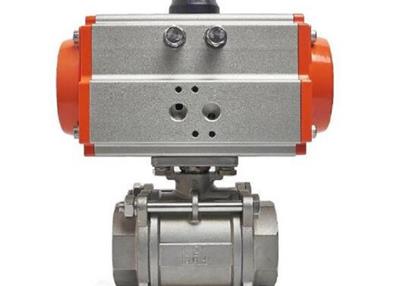

3PC Pneumatic control ball valve

Features

.Investment casting

.Locking devicehandle

.Anti-staticdevice

.Blow-out proof stem

.Automation accessories

.ISO5211 Direct mounting pad

.Live-loading design

Product application industry

The product is suitable for industries such as petroleum, chemical, natural gas, biochemical, pharmaceutical, environmental protection, and new energy.


Technical Specification

DN:Full port,DN8~DN100

W.P:1000WOG (PN63)

W.T:-20℃~180℃

Body Materia:WCB/CF8/CF8M

Actuator:Pneumatic,Electric motor

Thread type:ASME B1.20.1 (NPT),

                 DIN 259/DIN 2999, BS21,

                 ISO 288-1, ISO 7-1

Socket weld type: ASME B16.11 & DIN3239 part2

Butt weld type: ASME B16.25 & DIN3239 part1
