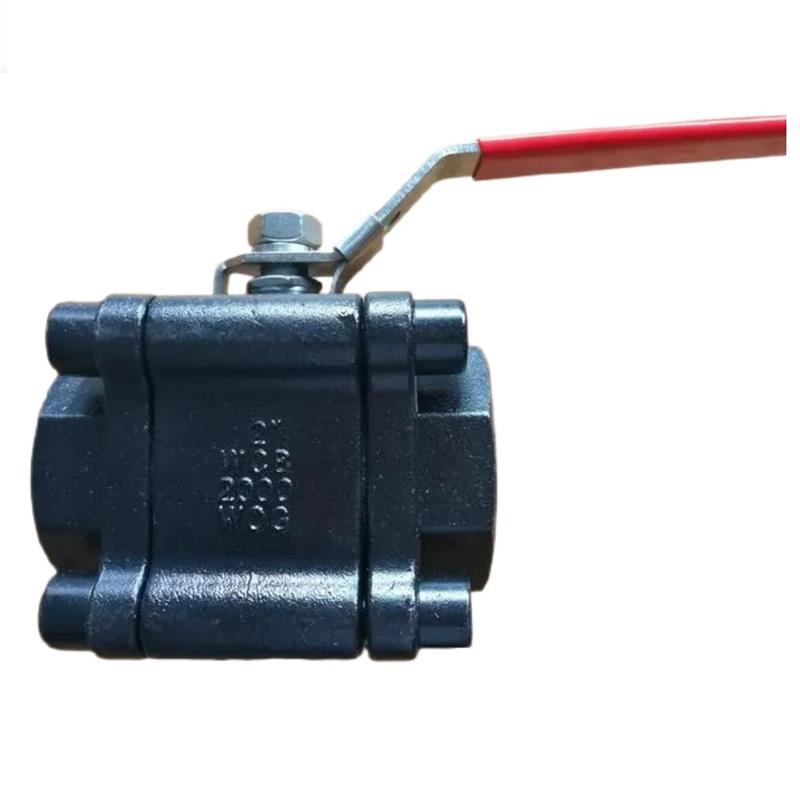

3PC Screwed Ball Valve With Mounting Pad(2000PSI)

Connect end: NPT,(BSPT,G,SW, on optional)
Size : 1/2 inch to 4 inch(DN15 to DN100).
Suitable medium: water, oil, steam, nitric acid, acetate acid and so on
Suitable temperature: -29 degree to 360 degree The seat material can be selected able to endure high pressure
Seat: PTFE,TEFLON,PEEK
Working pressure: 2000 WOG /PSI
Main material: WCB(CARBON STEEL),304(CF8),316(CF8M),316L(CF3M).

With ISO mounting pad,and square stem for fix pneumatic actuator.
